Explore our CE certified, high-strength cold-rolled steel industrial shelving and storage rack configurations, optimized for high load capacities and extreme durability.
The strategic role of CE certified heavy structural warehousing units in modern supply chains.
In the highly optimized sectors of modern 3PL logistics, industrial manufacturing, and global distributions, storage structures are no longer treated as passive steel frameworks. They are highly engineered components critical to material throughput, plant safety, and operational velocity. Among the various global structural standards, the European CE Certification (governed by EN 15512 and FEM 10.2.02 standards) stands out as the benchmark for structural integrity and mechanical safety.
As a leading exporter specializing in high-performance loading racks and pallet storage assemblies, Foshan Dinghui Intelligent Warehousing Technology Co., Ltd. bridge the gap between heavy structural engineering compliance and cost-effective industrial manufacturing. In this technical manual, we break down the engineering characteristics, supply-chain considerations, and manufacturing innovations that differentiate advanced structural racking systems from standard commercial racking. For multi-site enterprises, regional distributors, and engineering contractors, selecting a CE-certified manufacturer ensures that critical warehouse infrastructures can withstand dynamic loading cycles, high-frequency material handling, and complex seismic forces without material fatigue or catastrophic failure.
Why structural grade Q235B and Q355B cold-rolled steel define the load limit profiles of professional storage racks.
We utilize high-yield carbon steel variants Q235B and Q355B. This provides optimal ductility, high tensile strengths up to 510 MPa, and seamless welding performance under automated gas-metal arc welding (GMAW) processes.
Engineered lock connections featuring multi-claw structural hooks with mechanical safety pins. This design maximizes structural moment resistance, preventing beam displacement under dynamic lifting impact.
Advanced electrostatic powder coating systems apply thermosetting epoxy polyester coatings. Cured at 200°C, the finish resists impact, abrasion, moisture, and chemical exposure in harsh industrial facilities.
| Racking Component | Material Class (Standard) | Yield Strength (MPa) | Tensile Strength (MPa) | Quality Check / Testing Standard |
|---|---|---|---|---|
| Upright Columns (Columns & Bracings) | Q355B High-Strength Low-Alloy | 355 MPa Min. | 490 - 630 MPa | EN 15512 Structural Deflection Tests |
| Load Beams (Box Beams & Step Beams) | Q235B / Q355B Grade Steel | 235 / 355 MPa Min. | 370 - 510 MPa | Distributed Load Profile Simulations |
| Baseplates & Connectors | Thick Plate Q235B Mild Steel | 235 MPa Min. | 375 - 460 MPa | Weld NDI Inspection (Non-Destructive) |
| Wire Decking / Steel Shelves | Q195 cold-drawn steel wire | 195 MPa Min. | 315 - 430 MPa | Point Load Penetration Testing |
How Foshan Dinghui integrates global supply chain partnerships with state-of-the-art automated fabrication lines.
For international industrial storage buyers, structural racking procurement involves balancing initial costs, freight optimization, and material quality assurance. China's industrial manufacturing infrastructure has transitioned from basic manual metalworking to fully automated intelligent production lines. Based in Shunde District, Foshan, a major global industrial manufacturing hub, Foshan Dinghui Intelligent Warehousing Technology Co., Ltd. utilizes local supply-chain advantages to deliver high-quality products at competitive prices.
Our facility features continuous automated roll-forming machines that process raw sheet coils into complex upright column configurations in a single run. Continuous cold-roll forming minimizes internal residual stress within the metal profiles, ensuring straightness tolerances meet international standards (< L/1000). Automated multi-axis robotic welders execute consistent weld joints, eliminating the human errors common in manual operations. This level of automation guarantees that structural load capacity projections are met across entire production batches.
Our direct access to major steel mills in southern China ensures consistent material composition. We run an efficient plant operation, supported by a network of over 850 reliable partners. This integrated supply chain allows us to maintain a stable export capacity exceeding $25 million USD annually while offering short lead times for custom projects.
Every batch of loading racks produced in our 38,000 sqm factory undergoes strict quality control. Our 35-member QA/QC team monitors every stage of production: from incoming coil steel chemistry checks to weld penetration verification via non-destructive testing (NDI) and paint cross-cut adhesion tests. This ensures that every racking component leaves the facility fully compliant with CE safety standards.
Engineering tailored warehouse solutions for diverse industrial sectors and environmental conditions.

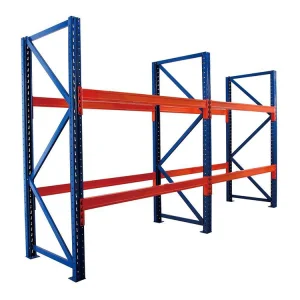

Designed for fast-moving consumer goods (FMCG) and e-commerce logistics centers. Multi-tier drive-in and selective pallet racking systems maximize vertical space utilization. These configurations are engineered to withstand continuous forklift loading cycles and reduce warehouse foot-print requirements.

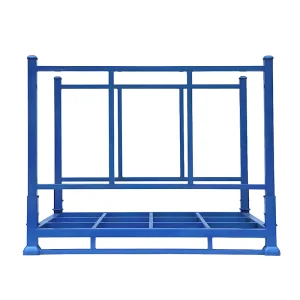

Specially configured heavy-duty selective tire racks and customizable stacking frames. These support high load concentrations while allowing direct selectivity. The boltless frame design simplifies reconfiguration as inventory requirements evolve.

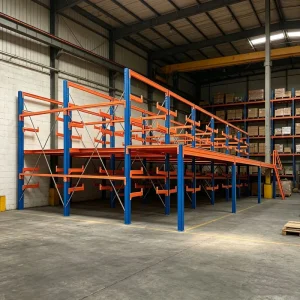

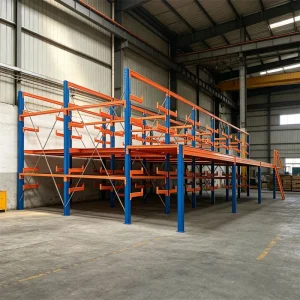

Industrial cantilever racking structures designed specifically for lumber, steel pipes, tubes, and sheet materials. These feature load-bearing capacities up to 1,500 kg per arm, with optional structural mezzanine integration to maximize warehouse volume efficiency.
Galvanized steel and anti-corrosive powder coatings designed for sub-zero food storage and chemical facilities. The material finishes are formulated to prevent oxidation, structural degradation, and paint peeling under humid, low-temperature conditions.
How digital integration, seismic engineering, and environmental compliance are shaping the next generation of loading racks.
The industrial storage industry is evolving rapidly, driven by the growth of automated warehousing. Standard static storage configurations are increasingly integrated into Automated Storage and Retrieval Systems (AS/RS). Modern AS/RS setups demand tight tolerances, as robotic crane stackers require structural alignment accuracy down to the millimeter to prevent system errors.
Seismic design is also a critical factor in global rack engineering. Racks are now engineered to perform as dynamic structural frames during seismic events. Advanced finite element analysis (FEA) software allows us to model seismic behaviors in specific regions, such as North America or Italy, ensuring upright and bracing configurations are optimized for local building codes. Our R&D team continuously refines baseplate dimensions, anchor layouts, and steel grades to maximize structural resilience under seismic loads.
Environmental standards are driving changes in surface finishing technology. The industry is moving toward zero-VOC powder formulations and low-energy curing cycles to minimize carbon footprints. Our modern automated pretreatment lines utilize zirconium-based conversion coatings, replacing traditional zinc phosphate processes. This reduces water waste and chemical runoff while maintaining excellent paint adhesion and corrosion resistance.
Inside our 38,000 square meter ISO 9001 certified production facility and structural QA validation laboratory.
Expert technical insights to assist in selecting and importing structural industrial warehouse storage racks.

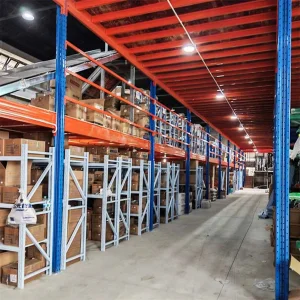

Select from our range of structural multi-level mezzanine systems, anti-corrosive platforms, and custom adjustable stacking racks.
